Campanile restoration
Photograph of the Campanile during restoration project, 1994, in the University of Northern Iowa Photograph Collection, CAM Box 6, CAM 3.07 Campanile- Restoration, 1994 Folder 6, #23, University Archives, Rod Library, University of Northern Iowa.
Campanile Restoration
Photograph of scaffolding around Campanile during restoration project, 1994, in the University of Northern Iowa Photograph Collection, CAM Box 6, CAM 3.07 Campanile- Restoration, 1994 Folder 6, #23, University Archives, Rod Library, University of Northern Iowa.



Background

After almost seventy years of wind and weather, the iconic Campanile on the campus of the University of Northern Iowa was ready for substantial restoration in 1994.  Bricks were cracked, the foundation was settling, and large stones around the base were bulging outward.  While the structure was likely in little danger of collapsing, it did need something much more significant than a quick tuckpointing.

Most of the work was carried out over the summer and fall of 1994, simultaneously with the major renovation of the adjacent Rod Library.  Consequently, a good portion of that part of campus was torn up and inaccessible to the public for a few months.  Construction work in that area even displaced Homecoming campaniling activities that year.

In early August 1994, someone, likely from the Facilities Planning staff, took several rolls of film of the work as it stood at that time.  Shortly before he retired, Associate Vice President for Facilities Morris Mikkelsen brought these photos to the University Archives.  A series of photos, shot day by day during the whole project, would certainly be interesting.  However, this series of images gives a nice look at what was happening in the middle of the work.  The photos confirm that the brick cladding was in very bad shape and needed to be replaced completely.  Other photos show moisture damage to the interior and at least slight deterioration of the limestone trim.




Damaged Base

Campanile base, 1994
Photograph of damage on the limestone base of the Campanile with misalignment of block just left of center, August 3, 1994, in the University of Northern Iowa Photograph Collection, CAM Box 6, CAM 3.07 Campanile- Restoration, 1994 Folder 6, #23, University Archives, Rod Library, University of Northern Iowa.
Campanile restoration, 1994
Photograph of damage on the limestone base of the Campanile with misalignment of blocks,  August 3, 1994, in the University of Northern Iowa Photograph Collection, CAM Box 6, CAM 3.07 Campanile- Restoration, 1994 Folder 6, #23, University Archives, Rod Library, University of Northern Iowa.

Damaged Interior

.
Damaged Campanile interior.
Photograph of damage in the Campanile interior with moisture damage near the spiral stairs, August 1994, in University of Northern Iowa Photograph Collection, CAM Box 6, CAM 3.07 Campanile - Restoration, 1994 Folder 6, #23, University Archives, Rod Library, University of Northern Iowa.

Damaged Cladding Brickwork

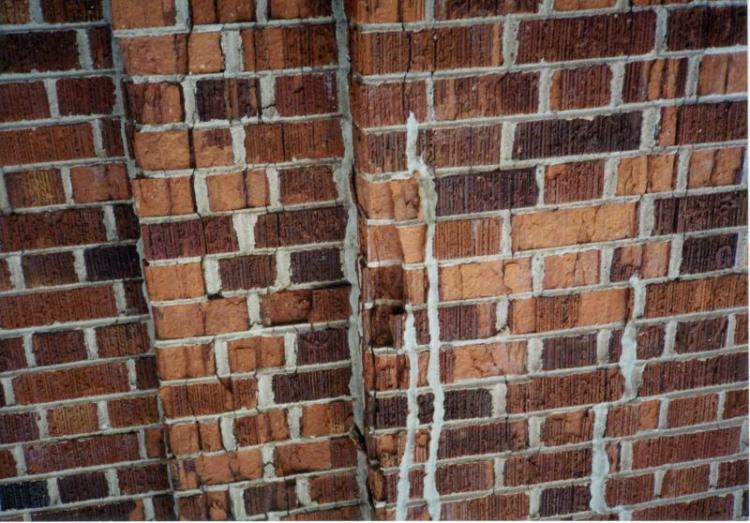

Campanile brickwork
Photograph of damaged Campanile brickwork with traces of earlier tuckpointing, August 3, 1994, in the University of Northern Iowa Photograph Collection, CAM Box 6, CAM 3.07 Campanile- Restoration, 1994 Folder 6, #23, University Archives, Rod Library, University of Northern Iowa.
Damaged brickwork
Photograph of damaged Campanile brickwork near one of the clock faces, August 3, 1994, in the University of Northern Iowa Photograph Collection, CAM Box 6, CAM 3.07 Campanile- Restoration, 1994 Folder 6, #23, University Archives, Rod Library, University of Northern Iowa.
Damage near clock face
Photograph of damaged Campanile brickwork near one of the clock faces, August 3, 1994, in the University of Northern Iowa Photograph Collection, CAM Box 6, CAM 3.07 Campanile- Restoration, 1994 Folder 6, #23, University Archives, Rod Library, University of Northern Iowa.

Drilling a Test Core

Mason drilling a core near the top of the Campanile
Photograph of a mason drilling a test core near the top of the Campanile, 1994, in the University of Northern Iowa Photograph Collection, CAM Box 6, CAM 3.07 Campanile- Restoration, 1994 Folder 6, #23, University Archives, Rod Library, University of Northern Iowa.
Campanile test core being rinsed off
Photograph of the test core taken from the Campanile being assessed for structural soundness, 1994, in the University of Northern Iowa Photograph Collection, CAM Box 6, CAM 3.07 Campanile- Restoration, 1994 Folder 6, #23, University Archives Rod Library, University of Northern Iowa.




Cladding Removal

Mason inspecting the bricks near the top of the Campanile
Photograph of a mason inspecting the bricks near the top of the Campanile, 1994, in the University of Northern Iowa Photograph Collection, CAM Box 6, CAM 3.07 Campanile- Restoration, 1994 Folder 6, #23, University Archives, Rod Library, University of Northern Iowa.
Campanile during cladding removal
Photograph of the Campanile during cladding removal, 1994, in the University of Northern Iowa Photograph Collection, CAM Box 6, CAM 3.07 Campanile- Restoration, 1994 Folder 6, #23, University Archives, Rod Library, University of Northern Iowa.
Damage to the brickwork near the top of the Campanile
Photograph of brick damage near the top of the Campanile, August 1994, in the University of Northern Iowa Photograph Collection, CAM Box 6, CAM 3.07 Campanile- Restoration, 1994 Folder 6, #23, University Archives, Rod Library, University of Northern Iowa.
Brickwork near the top of the Campanile
Photograph of the brickwork near the top of the Campanile, 1994, in the University of Northern Iowa Photograph Collection, CAM Box 6, CAM 3.07 Campanile- Restoration, 1994 Folder 6, #23, University Archives, Rod Library, University of Northern Iowa.

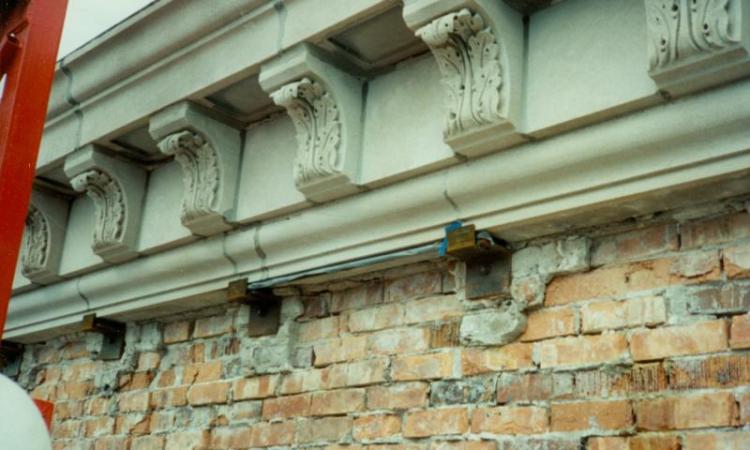

Brickwork and trim outside of the Campanile belfry
Photograph of the brickwork and trim outside of the Campanile belfry, August 1994, in the University of Northern Iowa Photograph Collection, CAM Box 6, CAM 3.07 Campanile- Restoration, 1994 Folder 6, #23, University Archives, Rod Library, University of Northern Iowa.

Limestone Trim

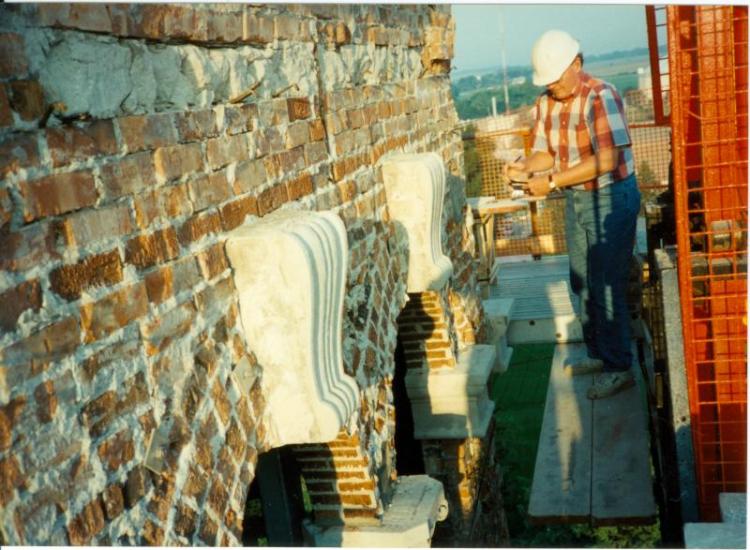

Limestone trim removed from Campanile exterior sitting inside Campanile belfry
Photograph of limestone trim removed from Campanile for cleaning, 1994, in the University of Northern Iowa Photograph Collection, CAM Box 6, CAM 3.07 Campanile- Restoration, 1994 Folder 6, #23, University Archives, Rod Library, University of Northern Iowa.
Cleaning limestone trim
Photograph of the Campanile’s limestone trim being cleaned, August 1994, in the University of Northern Iowa Photograph Collection, CAM Box 6, CAM 3.07 Campanile- Restoration, 1994 Folder 6, #23, University Archives, Rod Library, University of Northern Iowa.
Campanile restoration
Photograph of the Campanile during the limestone trim shaving portion of restoration project, 1994, in the University of Northern Iowa Photograph Collection, CAM Box 6, CAM 3.07 Campanile- Restoration, 1994 Folder 6, #23, University Archives, Rod Library, University of Northern Iowa.

Long Range Views of the Project

Campanile Restoration
Photograph of scaffolding around the Campanile during restoration project, 1994, in the University of Northern Iowa Photograph Collection, CAM Box 6, CAM 3.07 Campanile- Restoration, 1994 Folder 6, #23, University Archives, Rod Library, University of Northern Iowa.

Essay by University Archivist Gerald L. Peterson, with scanning by Library Assistant Joy Lynn, October 2014; last updated January 30, 2015 (GP); citations added by Lydia L. Pakala; photos and citations updated by Graduate Assistant Eliza Mussmann April 19, 2023.
